Hyphae growth Agent based system + SLS 3D printing
Seminar Computational Design and Digital Fabrication
Tutors: Long Nguyen, Tobias Schwinn
ITECH Master Program in the University of Stuttgart
Francesco Milano, Karen Antorveza, Mengdi Zhao
April 2019
Seminar Computational Design and Digital Fabrication
Tutors: Long Nguyen, Tobias Schwinn
ITECH Master Program in the University of Stuttgart
Francesco Milano, Karen Antorveza, Mengdi Zhao
April 2019

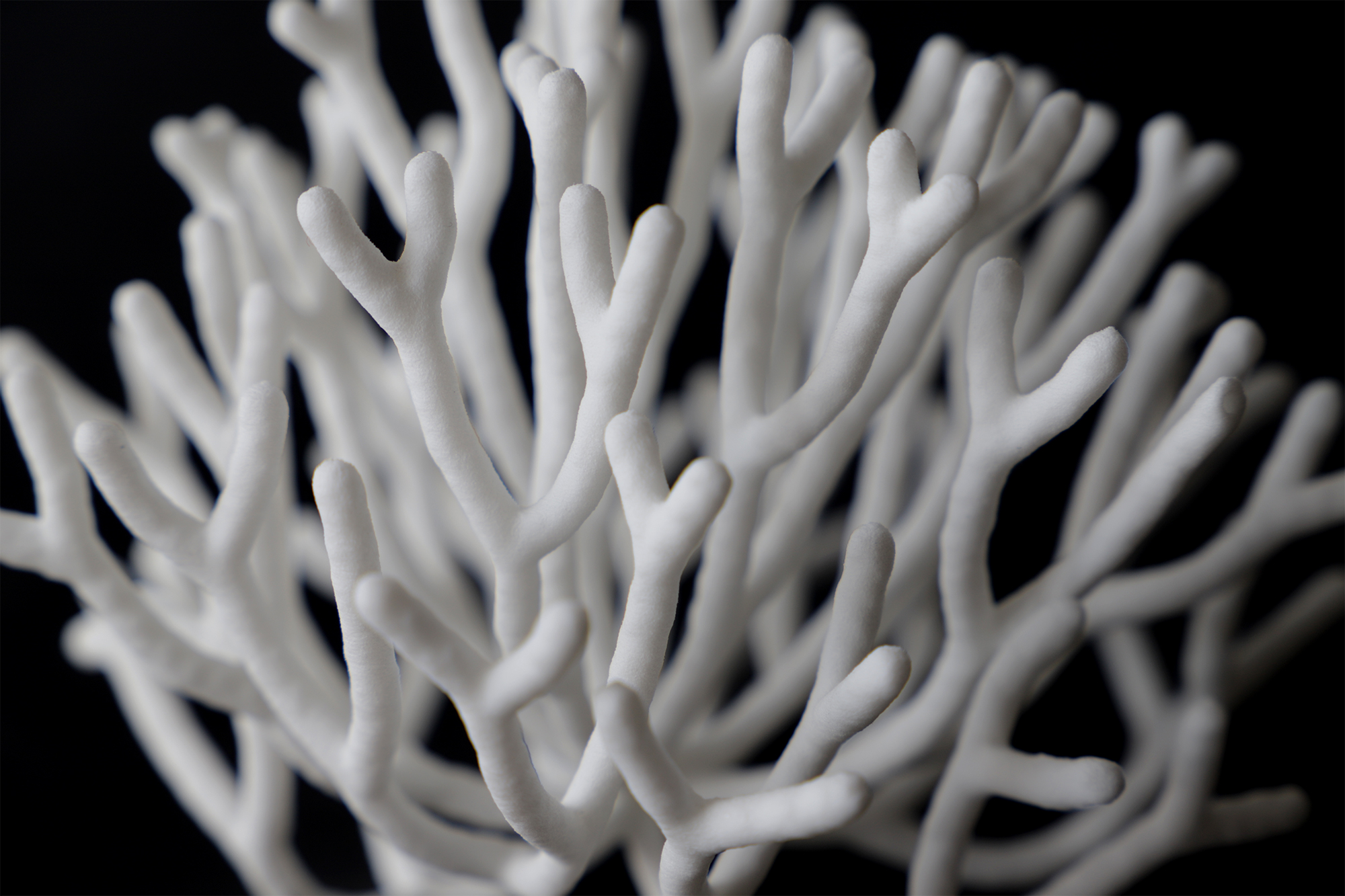

This exercise involved studying a formation process in nature (mycelium growth) and its abstraction, using Python programming to generate a complex geometry. The mycelium is the vegetative part of fungi, which consists of a network of interconnected filamentous cells called hyphae. The logic this structure follows while growing can be outlined in a defined set of rules: it is concentric, directional, branches progressively, and is space-filling. We simulated this behavior through an agent-based algorithm, where a certain amount of particles iteratively move away from a central point, wander in space, and reproduce following precise behavioral instructions. To the trajectory of each particle, volumetric properties were given using a voxelization algorithm which finally converts the system into a three-dimensional object to be materialized through SLS 3D printing.
![](https://freight.cargo.site/t/original/i/86ee839f2202b108186f47a541d16087e9880107eaeb49201b06f9ff612e7381/Asset-12xa.png)
Separation force
![End points detection Random branching](https://freight.cargo.site/t/original/i/49035fee47f3740a562b62830cf649fabd70ab01711729fae0ef828b6b11c923/GROWTH.gif)
End points detection, random branching.
![](https://freight.cargo.site/t/original/i/3b343dd203ba0f4c1c45302164e1a1e34f756430a8c3cd2aa2f71381bfcf1063/Feb-12-Hyphal-growth-system.png)
![](https://freight.cargo.site/t/original/i/cc0ffbb06ab08cbb69f86a352a50f35220673ef3c69a59fc5ba90cd0a50cbb53/b.jpg)
![](https://freight.cargo.site/t/original/i/5035d296e3b7e279a3f4caf810913830d9b583f951f1bb5ffacf72b398b90009/2.jpg)
![](https://freight.cargo.site/t/original/i/c09ff4c6caa66dc0a882d18b661f47bf4f7692e14e3735b3bac96bf0323c228a/4.jpg)
