PALABRAS PARA UNA TORMENTA
Munar / Centro Cultural Kirchner
Project Paloma Violeta Gonzalez
Team: Francesco Milano, Karen Antorveza
Production: cheLA, TaMaCo
Buenos Aires, Argentina
2018
Munar / Centro Cultural Kirchner
Project Paloma Violeta Gonzalez
Team: Francesco Milano, Karen Antorveza
Production: cheLA, TaMaCo
Buenos Aires, Argentina
2018

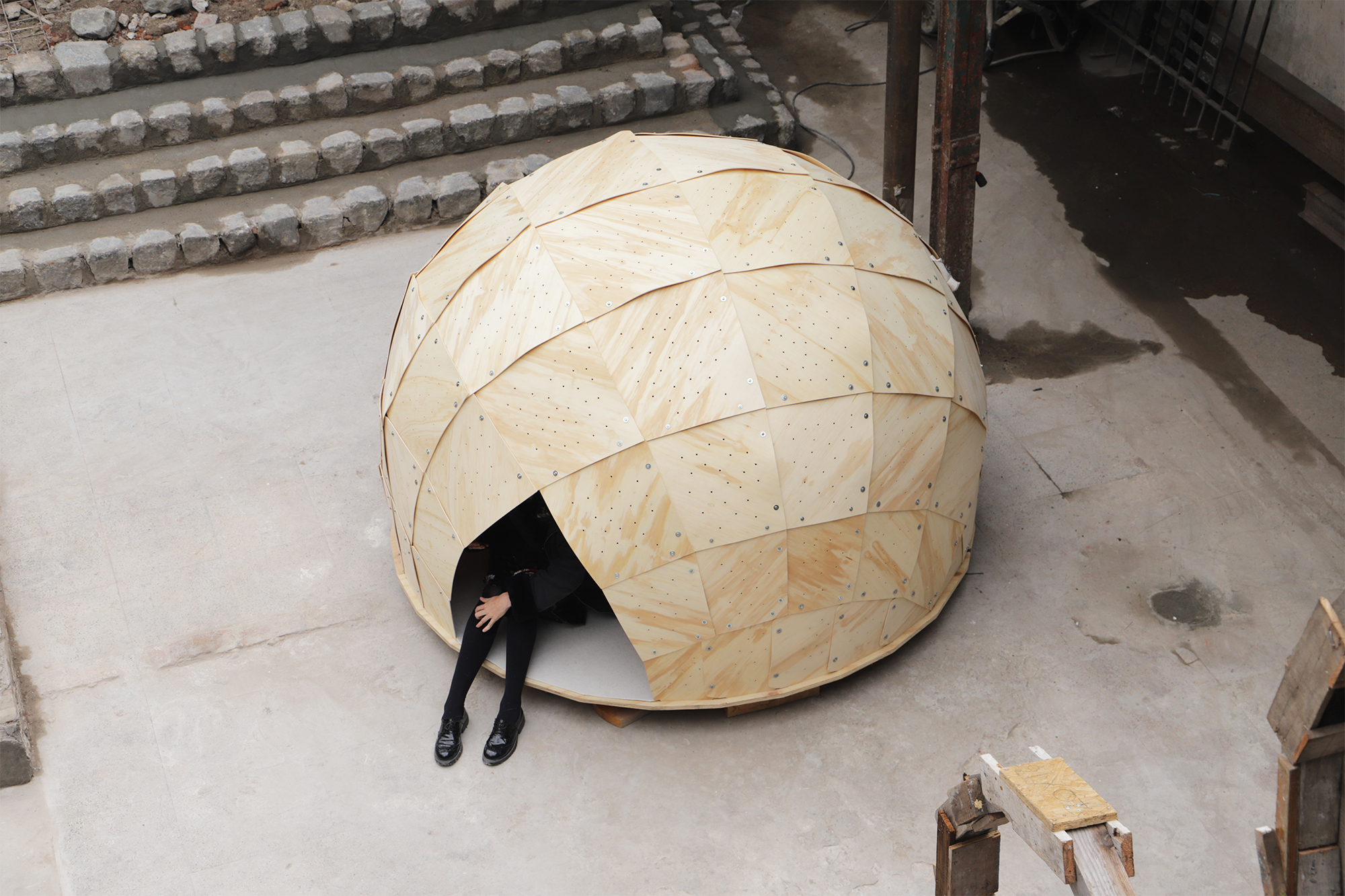

“Palabras para una tormenta” is a small sound art installation created by Paloma Violeta and designed and produced in collaboration with Francesco Milano, which is intended to be a protected environment to relax by listening poetry.

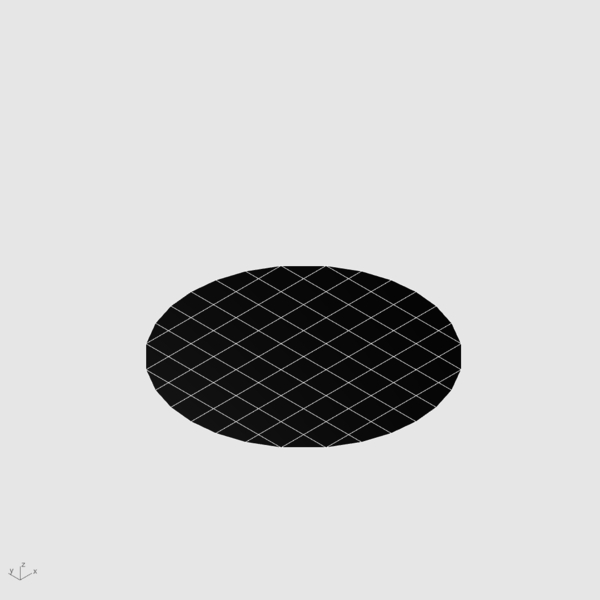

Its peculiar bubble like shape was obtained through a form finding process consisting of applying a normal force to each of the faces of a
planar mesh, which resulted in the “inflation” of the mesh itself. The model in order to be physically produced, was improved through a process of planarization of the mesh faces (PQ mesh), so it could be materialize
d by cutting 3mm thick plywood with a CNC machine. In the fabrication of the pieces, the wood fiber direction in the plywood has been considered, in order to obtain a uniform bending behavior of the whole structure. The outline of the quadrilateral pieces includes a union system, which allow the pieces to be connected through bolts.
Its peculiar bubble like shape was obtained through a form finding process consisting of applying a normal force to each of the faces of a
planar mesh, which resulted in the “inflation” of the mesh itself. The model in order to be physically produced, was improved through a process of planarization of the mesh faces (PQ mesh), so it could be materialize
d by cutting 3mm thick plywood with a CNC machine. In the fabrication of the pieces, the wood fiber direction in the plywood has been considered, in order to obtain a uniform bending behavior of the whole structure. The outline of the quadrilateral pieces includes a union system, which allow the pieces to be connected through bolts.
![](https://freight.cargo.site/t/original/i/c8c3da0e75a70461823dfddcf94213896b02031a128f3e2c5c6290f6206824ca/GIF.gif)
![](https://freight.cargo.site/t/original/i/ccabd6a59b181696d34f1101ff0e77584c7bfa365e5c1eb804dedee7853facf1/2-01.png)
![](https://freight.cargo.site/t/original/i/319537fd9b938abc8921b604ff2b50e93dd4333662e4416dad85301c147e2924/2-2.jpg)
![](https://freight.cargo.site/t/original/i/071a111e5d49b701da4d099c44be712706a36e3d10cfd258e9178254fd9cf461/IMG_6776_800.jpg)
![](https://freight.cargo.site/t/original/i/0d18cc1bbfd5921448259256637bbaaa7616d311e7f63082190948630ad4f309/Las-Formas-del-Sonido---Foto-Federico-Kaplun_1_800.jpg)
